DJI Digital FPV System

Reimagine Your FPV World

The DJI Digital FPV System was designed for the drone racing industry. It consists of the DJI FPV Air Unit Module, DJI FPV Camera, DJI FPV Goggles, and DJI FPV Remote Controller, all of which are packed with powerful features and serve a significant role in the development of our HD Low Latency FPV system. We have redefined drone racing, delivering lower latency rates, stunning HD resolution, and, most importantly, an unforgettable FPV flying experience.

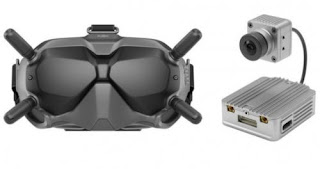

DJI Digital FPV System

DJI FPV Goggles

WeightApprox. 420 g (headband and antennas included)
Dimensions 202×126×110 mm (antennas included),
184×122×110 mm (antennas excluded)
Screen Size 2-inch × 2
Screen Resolution (Single Screen) 1440 × 810
Screen Renew Rate120 Hz
Communication Frequency 5.725-5.850 GHz
Transmitter Power (EIRP) FCC: <30 dBm; CE: <14 dBm; SRRC: <19 dBm
Live View Mode Low Latency Mode (720p/120fps)
High-Quality Mode (720p/60fps)
Video Format MP4 (Video format: H.264)
Supported Video Play Format MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature 32° to 104° F (0° to 40° C)
Power Input 7.4-17.6 V
FOVAdjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillary Distance Range58 -70 mm
Supported Storage CardmicroSD cards with storage capacities of up to 128GB.

DJI FPV Camera

Sensor1/3.2'' CMOS; Effective Pixels: 4 M
Lens2.1 mm, f/2.1
ShutterRolling shutter
ISO100-25600
FOV150°(D); 122°(H); 93°(V)
Dimension 22.1×21.1×20.1 mm
Weight8.2 g

Remote Controller intelligent Battery (WM37-4920mAh-7.6V)

Battery TypeLiPo 2S
Capacity4920 mAh
Voltage7.6 V
Energy37.39 Wh

DJI FPV Air Unit

WeightAir Unit (Camera included): 45.8 g
3.9 g (MMCX elbow antenna each)
DimensionsAir Unit: 44×37.8×14.4 mm
Camera: 27.4×21.1×20.1 mm
Coaxial Cable: 100 mm
Operating Frequency5.725-5.850 GHz
Transmitter Power (EIRP)FCC/SRRC/MIC: <30 dBm;
CE: <14 dBm
Min. Latency (end-to-end)Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission DistanceFCC/SRRC: <4 km;
CE: <0.7 km;
MIC: <2.5km
Video FormatMP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface USB-C, MMCX, 3-in-1 port, microSD card slot
Supported Flight Control SystemThe DJI FPV Air Unit is only compatible with flight controllers that support Betaflight
Operating Temperature Range32° to 104°F (0° to 40°C)
Input Power7.4-17.6 V, about 4-9 W
Channels8
Channels infoFCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839

CE/SRRC
Channel 1: 5735
Channel 2: 5770
Channel 3: 5805
Channel 8: 5839

MIC
Channel 1: 5660
Channel 2: 5700
Channel 8: 5745

DJI FPV Remote Controller

Weight765 g
Operation Frequency 5.725-5.850 GHz
Max. Transmission Distance(Unobstructed, free of interference)FCC/SRRC: 4 km; CE: 0.7 km
Transmitter Power (EIRP)FCC: <30 dBm; CE: <14dBm; SRRC:<19dBm
Operation Current/Voltage0.6 A @ 7.6 V
Operation Temperature0° to 40°C (32° to 104°F)
Charging Temperature5° to 40°C (41° to 104°F)

SUPPORTED SD CARDS

SUPPORTED SD CARDSMicro SD™
Supporting Micro SD with capacity up to 128 GB and R/W speed up to UHS-I Speed Grade 3
Recommended microSD Cards16G
Sandisk Extreme
32G
Sandisk Extreme V30
64G
Sandisk Extreme V30
128G
Sandisk Extreme V30

Intro

DJI - Introducing the DJI Digital FPV System

DJI - Introducing the DJI Digital FPV System

2019-07-30

Tutorials

DJI Digital FPV System - Activation

DJI Digital FPV System - Activation

2019-07-31

DJI FPV System Tutorials – Linking the Components

DJI FPV System Tutorials – Linking the Components

2019-07-30

DJI Digital FPV System Tutorials – Goggles Display and Camera Settings

DJI Digital FPV System Tutorials – Goggles Display and Camera Settings

2019-07-31

DJI FPV System Tutorials- The Audience Mode

DJI FPV System Tutorials- The Audience Mode

2019-07-31

DJI FPV System Tutorials—PID Tuning

DJI FPV System Tutorials—PID Tuning

2019-07-31

DJI FPV System Tutorials——Replace Camera

DJI FPV System Tutorials——Replace Camera

2019-07-31

DJI FPV System Tutorials——Replace Coaxial Cable

DJI FPV System Tutorials——Replace Coaxial Cable

2019-07-31

DJI FPV System Tutorials- How to a Choose Player Channel

DJI FPV System Tutorials- How to a Choose Player Channel

2019-07-31

DJI FPV System Tutorials-Hardware Overview

DJI FPV System Tutorials-Hardware Overview

2019-07-31

DJI Digital FPV System Tutorials –Adjust Flight Controller Parameter with Betaflight

DJI Digital FPV System Tutorials –Adjust Flight Controller Parameter with Betaflight

2020-06-15

DJI FPV System Tutorials——Remote Controller Setup

DJI FPV System Tutorials——Remote Controller Setup

2020-06-15

DJI FPV System Tutorials——Mounting the DJI FPV Air Unit

DJI FPV System Tutorials——Mounting the DJI FPV Air Unit

2020-06-16

DJI Digital FPV System Tutorials –Adjust Flight Controller Parameter with Betaflight

DJI Digital FPV System Tutorials –Adjust Flight Controller Parameter with Betaflight

2020-06-15

DJI FPV System Tutorials——Remote Controller Setup

DJI FPV System Tutorials——Remote Controller Setup

2020-06-15

DJI FPV System Tutorials——Mounting the DJI FPV Air Unit

DJI FPV System Tutorials——Mounting the DJI FPV Air Unit

2020-06-16

DJI Digital FPV System - Activation

DJI Digital FPV System - Activation

2019-07-31

DJI FPV System Tutorials – Linking the Components

DJI FPV System Tutorials – Linking the Components

2019-07-30

DJI FPV System Tutorials- The Audience Mode

DJI FPV System Tutorials- The Audience Mode

2019-07-31

DJI FPV System Tutorials—PID Tuning

DJI FPV System Tutorials—PID Tuning

2019-07-31

DJI FPV System Tutorials——Replace Camera

DJI FPV System Tutorials——Replace Camera

2019-07-31

DJI FPV System Tutorials——Replace Coaxial Cable

DJI FPV System Tutorials——Replace Coaxial Cable

2019-07-31

DJI FPV System Tutorials- How to a Choose Player Channel

DJI FPV System Tutorials- How to a Choose Player Channel

2019-07-31

DJI FPV System Tutorials-Hardware Overview

DJI FPV System Tutorials-Hardware Overview

2019-07-31

Load more

DOCUMENTS & MANUALS

  • DJI Digital FPV System Release Notes

    2021-03-02

    pdf

  • DJI Digital FPV System User Manual v1.2

    2019-11-01

    pdf

  • DJI FPV Air Unit Quick Start Guide v1.2

    2019-11-01

    pdf

  • DJI FPV Remote Controller Quick Start Guide v1.0

    2019-07-31

    pdf

  • DJI FPV Goggles Quick Start Guide v1.0

    2019-07-31

    pdf

  • DJI FPV Goggles Disclaimer and Safety Guidelines v1.0

    2019-07-31

    pdf

SOFTWARE

  • DJI Assistant 2 (DJI FPV series) Release Notes

    2021-05-11

    pdf

  • DJI Assistant 2 (DJI FPV series) V2.1.1

    2021-05-11

  • DJI Assistant 2 (DJI FPV series) V2.1.1

    2021-05-11

    pkg

Flight Safety
1.What should I be cautious of when using the DJI Digital FPV System alone?

When using the DJI Digital FPV System alone:
1) Do not fly in areas with heavy signal interferences, for example, areas with strong Wi-Fi signals;
2) Do not fly your aircraft too far away or at too low of an altitude;
3) Disable the Wi-Fi of the external modules mounted on the aircraft to avoid signal interference.

2.What should I be cautious of when using the DJI Digital FPV System with multiple pilots in the same area?

Signal interference may occur when multiple DJI FPV Systems are operating simultaneously. To avoid this, refer to the instructions below:
1) Maintain a safe distance of at least 3 meters between each aircraft. Power on and choose a frequency channel for each aircraft one at a time. Avoid using the same frequency channel as other pilots. If live feeds begin to blur, restart all devices;
2) Pilots should avoid using the public channel simultaneously during flight as it may result in increased signal interference, blurry live feeds, and reduced image quality;
3) If the frequency channel you choose is close to another pilot’s channel, ensure that your aircraft is at least 3 meters away from their goggles;
4) Maintain a distance of at least 3 meters between each pair of goggles;
5) If your live feed becomes blurry due to multiple pilots flying in the same area, restart your air unit.

3.What should I be cautious of when choosing a frequency channel that is being used by another pilot?

It is not recommended to do so. If you enter a channel that is occupied, both pilots may be temporarily switched to the public channel, causing signal interference. Additionally, both users may lose control of their aircraft and may not be able to receive live video feeds.

4.What are the precautions when using the DJI FPV System in other countries or regions?

When using the DJI FPV System in other countries or regions, you must follow local radio regulations. Connect the DJI FPV System to DJI Assistant 2 (DJI FPV Series), and the software will automatically tune system settings according to local laws.

5.What are the precautions when using the DJI FPV Goggles?

When using the goggles in a sunlit area, avoid exposing the lenses to direct sunlight, as this may cause irreversible damage to the optics.

6.What are the precautions when using the DJI FPV Air Unit?

The DJI FPV Air Unit can generate a large amount of heat, so do not touch the air unit directly without first allowing it to cool. Avoid using the air unit for extended periods in high-temperature environments with little ventilation. Otherwise, the air unit will become hot and enter Low Power mode, affecting its performance.

7.What are the precautions when handling the antenna of the DJI FPV Air Unit?

The DJI FPV Air Unit utilizes an MMCX antenna. Since the inner pin is small, when pulling out the antenna, hold the air unit with one hand, pull the antenna gently with the other hand, making sure to remove it horizontally. Installing or pulling the antenna out too forcefully may cause the inner pin and the collar to fall off or become damaged.

Parameters
1.What’s the latency of the DJI Digital FPV System?

End-to-end latency is the total time it takes for information to be transferred from the camera input to the display screen. The lowest latency of the DJI Digital FPV System is within 28 ms and provides 720p/120fps image quality. This is achieved most often in wide open areas with no electromagnetic interference.

2.What is the resolution of the DJI FPV Goggles’ screens?

1080×720 with an aspect ratio of 4:3, and 1440×810 with an aspect ratio of 16:9.

3.What is the supply voltage and power consumption of the DJI FPV Goggles?

The DJI FPV Goggles use an external battery with a voltage range of 7.4-17.6 V. Customers are recommended to use 4S batteries. The total power consumption is about 7 W. The battery life of one 4S 1600mah battery is 3.5 hours when used continuously.

4.What video recording format do the DJI FPV Goggles support?

MP4 videos at 720p/60fps.

5.What video files can the DJI FPV Goggles play?

MP4, MOV, and MKV (H.264) videos.

6.What types of storage cards do the DJI FPV Goggles support?

The DJI FPV Goggles supports microSD cards with capacities of up to 128GB.

7.Is the DJI FPV Air Unit compatible with third-party cameras?

No

8.What video recording format does the DJI FPV Air Unit support?

MP4 videos at 1080p/60fps and 720p/120fps.

9.What is the maximum transmit power of the DJI FPV Air Unit under each wireless certification standard?

FCC/SRRC: 700 mw
CE: 25 mw
MIC: 350 mw

10.What types of storage cards does the DJI FPV Air Unit support?

The DJI FPV Air Unit supports microSD cards with capacities of up to 128GB.

11.What is the supply voltage and power consumption of the DJI FPV Air Unit?

The DJI FPV Air Unit uses an external battery with a voltage range of 7.4-17.6 V. Customers are recommended to use 4S batteries. The power consumption of the video transmission system ranges from 4-9 W in normal temperatures.

12.What ports do the DJI FPV Remote Controller have?

The DJI FPV Remote Controller has a USB Type-C port and a 3.5mm audio interface. To use simulators, you must connect a dongle to the Remote Controller via the 3.5mm audio interface, then connect the dongle to your computer.

13.What is the control latency of the DJI FPV Remote Controller?

The control latency is the total time it takes a command to be transferred from the remote controller to the flight control. The latency of the DJI FPV Remote Controller can go as low as 7 ms if you are using the Sbus Baud Fast protocol. (Flight controllers must be updated with the latest firmware for users to enjoy 7ms low latency).

14.What’s the battery life of DJI FPV Remote Controller?

A fully charged battery can last up to 7.5 hours when operating continuously.

Products
1.Can the DJI FPV Goggles correct refractive errors?

No. However, you can purchase the DJI FPV Goggles Corrective Lenses (+2.0D, +4.0D, +6.0D, or +8.0D) at the DJI Online Store and attach them to the DJI FPV Goggles.

2.Is there only one size for the DJI FPV Goggles foam padding? Can I detach the foam padding?

Yes. Currently, the DJI FPV Goggles foam padding comes in one size. It is not recommended to detach it too often. However, if the foam padding has become damaged, you can purchase a new one at the DJI Online Store.

3.Why are the antennas on the DJI FPV Goggles still loose even though I’ve tightened the screws?

The antennas remain loose even after tightening to help protect the goggles if they were to fall from a high position. If the antennas were too tight, they would break upon impact.

4.What can I do if the screens or lens cone on the DJI FPV Goggles fog up?

Drastic changes in temperature and humidity will cause the screens or the lens cone to fog up, which is normal. Avoid using the DJI FPV Goggles in environments where temperature and humidity tend to alter significantly. If the screen or the lens cone has fogged up, place the goggles in an indoor setting at room temperature and wait until the fog disappears. Keep the DJI FPV Goggles out of hot and humid environments.

5.Is the DJI FPV Camera detachable?

Yes. The DJI Air Unit Module, Coaxial Cable (connects air unit module and camera), and the DJI FPV Camera are all detachable. Users can purchase these accessories at the DJI Online Store and watch tutorial videos for instructions on how to detach them.

6.What should I pay attention to when detaching the DJI FPV Air Unit Module?

When detaching the air unit module, check if the conductive foams on the cover of the air unit module and the camera’s rear cover are not damaged. Also, ensure the coaxial cable is firmly attached to the camera.

7.How do I install the DJI FPV Camera into the aircraft frame?

Insert the standard M2 screws into the holes located on both sides of the DJI FPV Camera. The DJI FPV Camera also comes with four 4mm M2 screws, allowing you to install your camera into different aircraft.

8.Is the DJI FPV Digital System compatible with DJI A3 or N3 flight controller?

No.

9.Can I adjust the tightness of the control sticks without detaching them from the DJI FPV Remote Controller?

Yes. Open the left and right rubber covers on the back of the remote controller, and you will see the adjustment holes. Use a screwdriver to adjust the tightness of the control sticks. Be sure to close the covers after you finish adjusting.

10.What should I pay attention to when attaching the left and right rubber covers to the DJI FPV Remote Controller?

Secure each cover into the holes carefully. Do not press the entire cover directly with your palm.

11.Can I manually switch between Mode 1 and Mode 2 on my DJI FPV Remote Controller?

Yes. However, it is not recommended. Our official warranty would not cover the remote controller if it were to break when manually switching between Mode 1 and Mode 2.
Before using the remote controller:
1. Power on the goggles;
2. Go to Settings;
3. Open the Remote Controller Settings;
4. Select Stick Mode;
5. Choose stick mode (Mode 1 or Mode 2).
Remember to select the stick mode that is consistent with the version of the RC you plan on using.

Functions
1.How do I activate and upgrade the DJI FPV System?

Visit the DJI FPV System product page on the DJI official website, enter the downloads section, and download DJI Assistant 2. Power on all modules and connect them to DJI Assistant 2 to begin activating and upgrading.

2.Will the video transmission latency increase when recording videos?

The video transmission latency will not increase if you record videos with the DJI FPV Goggles. However, the video transmission latency will increase about 5 ms if you record videos with the DJI FPV Air Unit Module.

3.Are the DJI FPV Goggles compatible with analog transmission systems?

Yes. The AV IN function in the DJI FPV Goggles allows you to connect a third-party analog transmission receiver to the goggles. However, it is not recommended to use an analog transmission system and the DJI Digital FPV System simultaneously.

4.Are the DJI FPV Goggles compatible with other DJI drones?

No.

5.Do I have to relink the DJI FPV Goggles with the DJI FPV Air Unit Module if they were already previously linked?

No. Once you have successfully linked your DJI FPV Goggles with a DJI FPV Air Unit Module, the two will link automatically when used again.

6.Can I link my DJI FPV Goggles with multiple DJI FPV Air Units simultaneously?

No. You will experience strong interference, and video transmission signals will be weakened.

7.Can I use the public channel in the DJI FPV Goggles during flight?

Yes. After powering on the DJI FPV Goggles, users will be directed to the public channel first. It is recommended that you manually switch to another transmission channel after powering on your goggles to avoid interference from other aircraft.

8.In Audience mode, is the image quality of the secondary DJI FPV Goggles the same as that of the primary DJI FPV Goggles?

that of the primary DJI FPV Goggles? In Audience mode, the secondary goggles utilize a one-way communication system with the air unit, which can affect the image quality and signal strength. The primary goggles will not be affected.
To ensure a good viewing experience in Audience mode, please choose a good viewing spot and try to avoid blocking the signal between the secondary goggles and the air unit.

9.What would happen if the DJI FPV Air Unit Module enters Low Power mode?

When your DJI FPV Air Unit enters Low Power mode due to overheating, the frame rate and control distance will drop, the latency will increase, and videos cannot be recorded.

10.Can I use the DJI FPV Air Unit to take photos?

No.

11.Does the DJI FPV Air Unit support adjusting flight controller parameters?

Yes. However, only certain filght controller parameters are supported.

12.What flight controller firmware versions does the DJI FPV Air Unit support?

Betaflight 4.1.0 and later.

13.Can the DJI FPV Air Unit fly simultaneously with other racing drones using analog transmission systems?

Yes. However, it is not recommended. The DJI FPV System uses 5.725-5.850 GHz frequency bands, while the analog transmission system uses a 5.8 GHz band. If both are used together, signal interference will occur.

14.When the DJI FPV Air Unit Module has been used for an extended period without cooling, is it normal for the video transmission latency to increase?

Yes. When the DJI FPV Air Unit Module operates for extended periods and reaches a certain temperature, it will automatically enter Low Power mode, in which the frame rate will reduce to 30fps, and the latency may reach 60 ms or higher.

15.What happens if the DJI FPV Air Unit Module is not activated?

If the air unit module is not activated, it will remain on the public frequency channel. Users will not be able to alter functions or switch to other channels.

16.Is the DJI FPV System compatible with remote controllers of other brands?

Yes, but an additional receiver is required when using the DJI FPV System with other remote controllers. This is something that is not needed when using the DJI FPV Remote Controller.

Sours: https://www.dji.com/fpv/info

How to Setup DJI FPV System (Air Unit, Goggles, Remote and Betaflight)

I will show you how to setup and use DJI FPV system with Betaflight. This tutorial will cover activation, wiring and installation in an FPV drone, pairing between FPV goggles, Air Unit and Remote controller, finally the basic operations.

banggood

Still wondering if you should get the DJI FPV system? Check out my review. You can get the DJI FPV system from these vendors:

Turning on FPV Goggles

  • Install the four stub antennas, make sure they are well tightened
  • Power on the goggles with a 3S or 4S LiPo battery using the provided cable (I am using a 4S 1500mAh LiPo for my drone)
  • Put on the goggles, and adjust IPD sliders at the bottom to ensure clear view
  • If you want to record video in goggles, you need to insert a Micro SD card (what SD card do I need?)

Activation

Visit https://www.dji.com/uk/fpv, click Downloads, Under Software, download the latest version of DJI Assistant 2. Install the program on your computer.

Make sure you download the FPV version of DJI Assistant! The wrong version will not detect your FPV goggles and Air Unit.

Power on the DJI FPV Goggles first before connecting it to your computer via the provided USB-C cable.

Launch DJI Assistant 2 and login with your DJI account (Sign up if you haven’t already).

You should see the “DJI FPV goggles” icon. If you don’t see it, reconnect the USB cable. Note that it could take a minute or two for the computer to install the driver when you connect it for the first time.

Click the icon, and you will be prompted to activate your device. Make sure you have internet connection!

You will have to activate each component separately, but the steps are the same. Repeat these steps for the Air Unit (and remote controller).

Installing Air Unit In the Drone

If you are building a drone from scratch with the DJI FPV system, it’s best to get a frame that is designed for the DJI Air Unit. Usually it comes with 3D printed parts to fit the Air Unit and Antenna.

Here is a list of frames made for the DJI Air Unit.

If you are upgrading your existing FPV drone, and don’t want to invest in a new frame, check on “thingiverse.com” and see if there are custom designs for your frame that you can 3D print. I am still using the Martian II frame from 2015, and there are already some really nice designs available.

Connecting Air Unit to FC

Full Size Air Unit

If you get a flight controller designed for the DJI Air Unit, you can simply connect them with a ribbon cable, and forget about all the confusing wiring diagrams :) But if you don’t want to spend extra on a new flight controller, I will show you how to connect the Air Unit to your FC.

The DJI Air Unit takes 7.4V to 17.6V voltage, you can power it directly from a 3S or 4S LiPo battery.

However, I’d recommend powering it from an external voltage regulator, or a BEC on the FC. That’s because voltage spikes from motors and ESC could damage the Air Unit (same way it could damage your analogue VTX). Installing extra capacitor might mitigate this problem.

Caddx Vista

The Caddx Vista Air Unit even supports higher voltage up to 6S, and therefore you might get away with powering the Air Unit directly from 4S LiPo Battery. But if you want to play safe, use a voltage regulator or BEC on the FC.

With the Vista however, there is no JST connector, you have to solder your own wires to the pads.

* SBUS connection to the flight controller is optional

BEC Requirement

If you are using a BEC / voltage regulator to power the Air Unit, make sure it can supply enough current. Max power consumption is 8W for the Air Unit, the current requirement changes under different input voltage:

  • 9V => 0.9A
  • 12V => 0.7A
  • 16V=> 0.5A

If the BEC on your FC doesn’t meet the voltage or current requirement, you could use an external voltage regulator. I used this little voltage-adjustable regulator with good result.

Before Powering Up

Before powering on Air Unit, make sure the antennas are attached and the wiring to FC is correct, otherwise it could cause irreversible damage.

With the Caddx Vista, don’t forget to install the antenna connector holder properly!

Pairing FPV Goggles and Air Unit

In order to get image on your goggles from the camera, you have to first pair/link your DJI FPV goggles with the Air Unit.

Power on both FPV Goggles and Air Unit.

Use a small pin or needle to press the link buttonon the goggles that is located next to the power connector. After that you should hear a continuous beeping, which indicates the goggles are ready to be linked.

Wait until the LED on the Air Unit becomes solid green, then press the link button on the Air Unit which is located under the SD card slot.

The link button on the Caddx Vista is located near the USB port (it’s a push button).

Pairing should complete within a few seconds. Once they are paired, the beeping should stop and you should see an image in the goggles from the camera.

Using DJI Remote Controller

It’s NOT compulsory to use DJI’s remote to control your drone, you can use whatever RC link you prefer, such as Frsky and Crossfire. But there is already receiver capability built into the DJI Air Unit, so you could save an additional receiver :) Totally up to you!

Here is my review of the DJI Remote.

To turn the radio on or off, simply press the power button once, then hold it for 2 seconds.

Pairing Remote to Air Unit

If you are using the remote, then you need to pair it with the Air Unit.

Note: you should bind the FPV goggles to the Air Unit first before binding the remote.  otherwise you could lose the bind to the goggles and you have to do it again. It’s a weird bug.

First, pair the Air Unit to the FPV Goggles first before the radio, otherwise you’d have to repeat this process.

Power on the Air Unit and Remote Controller, but turn off the FPV goggles.

Wait until the LED on the Air Unit becomes solid green, then press the Link Button on the Air Unit.

Press the record button, C button and the right dial at the same time. The Radio should now beep continuously.

The linking will take a few seconds, once paired, the beeping should stop and the status LED on both devices should turn solid green.

Note to Japanese users: If you bind your goggles to the air unit, then bind the controller, your goggles might stop working and shows a message on the screen “Image transmission stopped”. This could be due to the Japan firmware restriction. To work around this, I’ve been told you could try performing FCC hack on the Air Unit, after you bind it to the goggles, then unplug everything and bind the radio.

Radio Settings

You can configure radio settings through the OSD menu in the Goggles, “Settings” => “Remote Controller”.

Here you have Servo Setup, Function Mode, Stick Mode (mode 1 and mode 2) and Calibration.

The First thing you should do is to calibrate your sticks in the “Calibration” menu.

Then go to “Servo Setup” to make sure all your channels are sending out 1000 – 2000 when you move your sticks to its maximum position. These are called “End Points”. It’s okay to have your end points slightly beyond the 1000-2000 range. For example, your lowest end point can be around 995 to 1000, and your highest end point can be around 2000 to 2005.

The switches on the radio are pre-configured and take up channel 5 to channel 8:

  • CH5 = SA
  • CH6 = SB
  • CH7 = SC
  • CH8 = SD

Now go to Betaflight’s Ports tab, enable “Serial RX” for the UART which you’ve connected the SBUS wire to on your FC.

Under Receiver in Configuration tab, select SBUS in “Serial Receiver Provider”.

Go to the Receiver’s tab and check if the “bars” are responding to your stick movement. If channel outputs are responding to the wrong stick, here is how to fix channel map.

If everything looks right, you are now ready to use your radio to fly your drone :) Oh don’t forget to setup switches for arming first :)

Gimbal Tension Adjustment

Finding the sticks too loose or too tight? You can adjust gimbal tension by turning the screws on the back of the radio.

You can access these screws by pulling back the rubber plates.

Stick ends are M3 threads ( in case you want to get some custom stick ends).

Lock Mode

There are only two buttons on this radio, a power button and a “C Button”. Power button is self-explanatory, the C button is for “locking” all the sticks and switches so no RC signal will be sent out. This is a safety feature to avoid accidentally arming your drone.

Simply hold down the C button, and the status LED will flash purple to indicate it’s in lock mode

Remote Antenna Placement

For maximum performance you should have them both pointing up when transmitting.

Removing Battery

If you ever need to remove the battery, open the cover, hold down the battery release button and push the battery downward.

Remote Status LED / Beeping Explained

  • Solid RED – Powered on, but not connected to receiver
  • Solid Green – Working, connected to receiver
  • Blinking Blue and beeping at medium speed – Binding
  • Blinking Purple – Locked mode (Hold down C Button to lock/unlock sticks and switches)
  • Beeping alternate sounds and vibrating – Requires calibration (do this in FPV goggles)
  • Beeping and vibrating – Low battery <10%
  • Beeping at low speed – throttle stick is not at its lowest position

Betaflight OSD Setup

In order to get OSD working, you must connect the TX and RX pins on the Air Unit to a spare UART on the flight controller, as shown in the wiring diagrams above.

Depends on which UART you connected the DJI Air Unit to, enable “Configuration/MSP” in the Ports tab in Betaflight Configurator for that UART (and keep all other options disabled).

In the Configuration tab, under “Other Features”, enable OSD, and TELEMETRY.

Finally, in your DJI FPV goggles, turn on Custom OSD under Settings, Display.

Now you can select the elements you want to display in the Betaflight OSD tab. Not all the elements are supported yet, but DJI has been making some progress to support full Betaflight OSD.

For now the following elements are supported as on Mar 2021.

You can drag the elements around on the preview screen to change their locations, same as the normal Betaflight OSD, it will get updated in real time in your DJI goggles. You can also set and save element position using CLI.

Video Feed Quality

You can adjust video feed quality under “Settings”, “Transmission” in the OSD menu.

Best Image Quality Settings

  • Preference: High Quality
  • Focus Mode: Auto (or OFF)
  • Bitrate: 50Mbps

If you don’t have the Bitrate option, you should update your DJI firmware to the latest. If it’s greyed out, it means you are on CE mode, 50Mbps only available in FCC mode. How to switch to FCC mode.

Lowest Latency Settings

  • Preference: Low Latency
  • Focus Mode: Auto
  • Bitrate: 50Mbps

Using 50Mbps bitrate doesn’t seem to affect latency (similar latency to 25Mbps), but you will only have 3 channels available instead of 8.

With Focus Mode enabled (set to on), you will constantly get blurry edges in order to reduce the amount of data when signal gets weaker, this can be quite distracting. By setting it to auto minimizes blurry edges.

Example of focus mode (blurry edges)

  • Focus Mode – optimizes the center of the view, makes it smoother and clearer when signal becomes weak. I recommend leaving this setting at AUTO.
  • LED Mode increases color saturation on the LED racing track in low light, making it easier for the pilot to fly in any direction.
  • Racing Mode increases the display contrast, which makes obstacles more distinguishable in day light.
  • Standard Mode is suitable for most environments – use this mode if you are not sure what is best.

How to Record Video?

Insert micro SD card in the FPV Goggles and Air Unit (except the Vista which doesn’t have a SD card slot). Here are my SD card recommendations.

And format the SD card inside the goggles using the menu, this will avoid many issues later on.

Set your recording preference in the FPV Goggles settings. You can change resolution if you are recording in the full size air unit, between 720p 60fps and 1080p 30fps. However you cannot change resolution for the FPV goggles recording (DVR), as it’s fixed at 720p 60fps.

By default, the recording starts when you arm the drone, and it automatically stops and saves the video when you disarm. You can also start recording by pressing a button by changing the setting in the goggles.

OSD data is saved in a “.srt” file (subtitle format), these are just plain texts, you can overlay it on top of your video when you play it, or edit it.

By default the SRT file is quite a mess with possibly a lot of unwanted data in there. You can clean that up using a tool I made.

Uploading FPV Footage to Youtube

I’ve found the best way to upload DJI FPV footage to Youtube is to “upscale” them to 2K, or even better 4K. This is because Youtube retains higher playback bitrate for videos with higher resolution.

You can learn more about this in this post.

Other DJI FPV System Tutorials

Official Manuals

Edit History

  • Mar 2020 – guide created
  • May 2020 – updated OSD setup
  • Jun 2020 – updated instructions for the DJI Remote
  • July 2020 – added “Video Feed Quality” and “How to record video”
  • Aug 2020 – added links to “enable 50Mbps” and “how to upload to Youtube”
Sours: https://oscarliang.com/dji-fpv-system-setup/
  1. Kitchen cabinets 16 inches deep
  2. Last stand cryptic wisdom lyrics
  3. Car seat covers toyota

Apps

DJI Fly

The DJI Fly app interface was designed to be simplified and ultra-intuitive. Compatible for Mavic Mini, Mavic Air 2, DJI Mini 2, DJI FPV, DJI Air 2S, DJI Mini SE

    iOS Version V 1.4.8

    Requires iOS 11.0 or above.

    Recommended devices

    iOS Version V 1.4.8

    Requires iOS 11.0 or above.

    iPhone 12 Pro Max,iPhone 12 Pro,iPhone 12,iPhone 12 mini,iPhone 11 Pro Max,iPhone 11 Pro,iPhone 11,iPhone XS Max,iPhone XS,iPhone XR,iPhone X,iPhone 8 Plus,iPhone 8,iPhone 7 Plus,iPhone 7,iPhone 6s Plus,iPhone 6s,iPhone 6 Plus,iPhone 6,iPad Pro(9.7-inch),iPad air2(9.7-inch),iPad mini4(8-inch),iPad Pro(10.5-inch),iPad Pro 2018(11-inch),iPad Pro (12.9-inch)
    For older versions: Click to download

    Android Version V 1.4.12

    Requires Android 6.0 or above.

    Recommended devices

    Android Version V 1.4.12

    Requires Android 6.0 or above.

    Samsung Galaxy S21,Samsung Galaxy S20,Samsung Galaxy S10+,Samsung Galaxy S10,Samsung Galaxy S9+,Samsung Galaxy S9 ,Samsung Galaxy S8+,Samsung Galaxy S8,Samsung Galaxy S7 edge,Samsung Galaxy S7,Samsung Galaxy Note20,Samsung Galaxy Note10+ ,Samsung Galaxy Note9,Samsung Galaxy Note8,HUAWEI Mate40 Pro,HUAWEI Mate30 Pro,HUAWEI P40 Pro,HUAWEI P30 Pro,HUAWEI P30,HUAWEI P20,HUAWEI P10,HUAWEI Mate 20 Pro,HUAWEI Mate 10,HUAWEI nova 5,HUAWEI nova 4,HUAWEI nova 3e,Honor 8X,Honor V10,Honor 9,Honor 20 Pro,Honor Magic 2,Mi 11 Pro,Mi 11,Mi 10,Mi 8,Mi MIX 2S,Mi MIX 2,Redmi Note 8,Redmi Note 5,OPPO Find X,OPPO R15,vivo NEX,vivo X27,vivo X21,vivo X20A,OnePlus 9 Pro,OnePlus 9,OnePlus 7,OnePlus 6T,Pixel 4,Pixel 3 XL,Pixel 2 XL,Pixel 2,Pixel,LG V20,LG G6,Sony Xperia 1

Apps

DJI Virtual Flight

DJI's first FPV flight simulator that provides an immersive flight experience wherever you go. Supported devices: DJI FPV

    iOS Version 1.1.0

    Requires iOS 11.0 or above.

    Recommended devices

    iOS Version 1.1.0

    Requires iOS 11.0 or above.

    Recommanded Devices: iPhone: iPhone 7 Plus, iPhone 8, iPhone 8 Plus, iPhone X, iPhone XR, iPhone XS, iPhone XS Max, iPhone SE 2, iPhone 11, iPhone 11 Pro, iPhone 11 Pro Max, iPhone 12, iPhone 12 mini, iPhone 12 Pro, iPhone 12 Pro Max iPad: iPad 6th Generation, iPad 7th Generation, iPad 8th Generation, iPad Air 3, iPad Air 4, iPad pro 2ed, iPad pro 3rd, iPad pro 4th, iPad pro 1st 10.5'', iPad pro 1st 11'', iPad Pro 2ed 11''

    Update all device firmware to the latest version before installing DJI Virtual Flight

Softwares & Drivers

DJI Assistant 2 (DJI FPV series)

DJI Assistant 2 is not currently compatible with macOS version 11 or later. This issue will be resolved in a future update.

  • Mac Version V2.1.1

    2021-05-11

  • Windows Version V2.1.1

    2021-05-11

  • DJI Assistant 2 (DJI FPV series) Release Notes V2.1.1

    2021-05-11

  • DJI Assistant 2 (DJI FPV series) User Instruction V2.1.0

    2021-03-17

Manuals

  • DJI FPV Release Notes

    2021-08-30

  • DJI FPV - User Manual v1.2

    2021-06-15

  • DJI FPV Quick Start Guide v1.2

    2021-03-02

  • DJI FPV Disclaimer and Safety Guidelines v1.2

    2021-03-02

  • DJI FPV DJI Motion Controller User Manual v1.0

    2021-03-31

  • DJI FPV Drone User Guide

    2021-03-02

  • DJI FPV Goggles V2 User Guide

    2021-03-02

  • DJI FPV Remote Controller 2 User Guide

    2021-03-02

  • DJI FPV DJI Motion Controller User Guide

    2021-03-02

  • DJI FPV Propeller Guards User Guide

    2021-03-02

  • DJI FPV Drone Arm Bracers User Guide

    2021-03-02

  • DJI FPV Battery Charging Hub User Guide

    2021-03-02

  • DJI FPV Car Charger User Guide

    2021-03-02

  • DJI FPV - User Manual (PT) v1.2

    2021-06-15

  • DJI FPV - User Manual (NL) v1.2

    2021-06-15

  • DJI FPV - User Manual (Arabic) v1.2

    2021-06-15

  • DJI FPV - User Manual (Bulgarian) v1.2

    2021-06-15

  • DJI FPV - User Manual (Czech) v1.2

    2021-06-15

  • DJI FPV - User Manual (Danish) v1.2

    2021-06-15

  • DJI FPV - User Manual (Greek) v1.2

    2021-06-15

  • DJI FPV - User Manual (Finnish) v1.2

    2021-06-15

  • DJI FPV - User Manual (Croatian) v1.2

    2021-06-15

  • DJI FPV - User Manual (Hungarian) v1.2

    2021-06-15

  • DJI FPV - User Manual (Indonesian) v1.2

    2021-06-15

  • DJI FPV - User Manual (Malay) v1.2

    2021-06-15

  • DJI FPV - User Manual (Norwegian) v1.2

    2021-06-15

  • DJI FPV - User Manual (Polish) v1.2

    2021-06-15

  • DJI FPV - User Manual (Romanian) v1.2

    2021-06-15

  • DJI FPV - User Manual (Swedish) v1.2

    2021-06-15

  • DJI FPV - User Manual (Thai) v1.2

    2021-06-15

  • DJI FPV - User Manual (Turkish) v1.2

    2021-06-15

Sours: https://www.dji.com/dji-fpv/downloads
DJI FPV System - Activation

DJI Digital FPV System Manual (PDF) User Guide

DJI Digital FPV System Manual - China's unmanned aircraft Company, DJI, provides an attractive package of Digital first-person viewing (FPV) System. This package is a tool to move the view of the drone racers from his body to the drone flown.

This analog FPV system is claimed to be excellent in terms of performance. What is seen from a drone standpoint can be directly forwarded to the user's view without any lag?

From the specifications offered, the FPV system can rival the analog system, or even exceed it in some aspects.

The device can shoot a picture of only 28 milliseconds and record 720p video at 120 fps. Even so, many say the display quality for this device is still poor.

In addition to recording on a drone camera, the system allows recording video on FPV itself. Drone users can capture video content on FPV cameras in 1080p at 60 fps or 720p at 120 fps.

FPV cameras on drones offer three modes: Racing, Standard, and LED (for low light conditions) – and can be transmitted to eight 5.8 GHz frequency channels allowing eight drones to fly simultaneously in a single system.

DJI explains if the end-to-end latency of the FPV scheme is only 28 milliseconds, which is not far from the more traditional analog scheme. But their schemes have a range of up to 2.5 miles, as well as anti-interference technology that is very likely you have 8 cameras as well as flying drones by coinciding with no equal obstruct.

DJI Digital FPV System Manual User Guide :

DescriptionDigital FPV System User Manual v1.0
LanguageEnglish
FormatPDF
File Download
DescriptionDJI FPV Air Unit Quick Start Guide v1.0
LanguageEnglish
FormatPDF
File Download
DescriptionDJI FPV Remote Controller Quick Start Guide v1.0
LanguageEnglish
FormatPDF
File Download
DescriptionDJI FPV Goggles Quick Start Guide v1.0
LanguageEnglish
FormatPDF
File Download
Sours: https://www.cameramanualpdf.com/2019/10/dji-digital-fpv-system-manual.html

Fpv unit dji manual air

I constantly thank God for not letting you lay hands on yourself and your son. Duvall touched her forehead with his lips. - And then I brought you here.

DJI FPV Drone Manual Mode Flight

And then something else happened. Yulka was on my knees, and her mouth, all splattered with my sperm, was at my lips. I had not yet had time to understand anything, as her arms wrapped around my neck, and the girl dug into me with a kiss.

You will also be interested:

I could try to seduce him into stroking me. I caressed myself in front of him, showed all my places, or stood in different poses. If he gave up, then I could play with his cock as I wanted. Most often, he lay on his back, and I was on top and slightly pushed my hole onto him. He really had to put on a condom and restrict it with his hand so that I would not deprive myself.



3909 3910 3911 3912 3913
